產品小貼士：
注：點擊圖片查看大圖
更多尺寸及材質請咨詢設計師
設計師：david chipperfield
出廠年份：2010
產品簡介

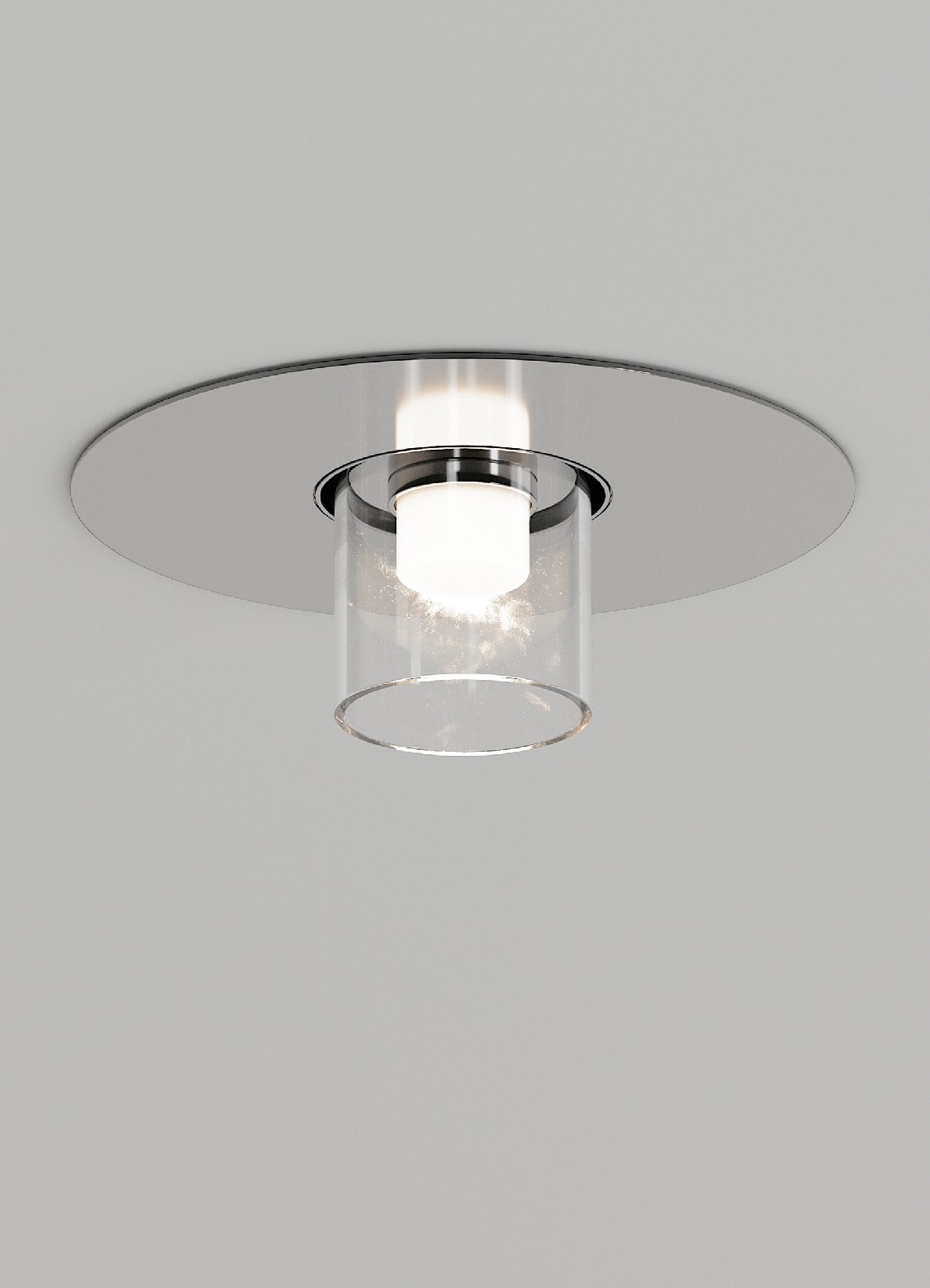

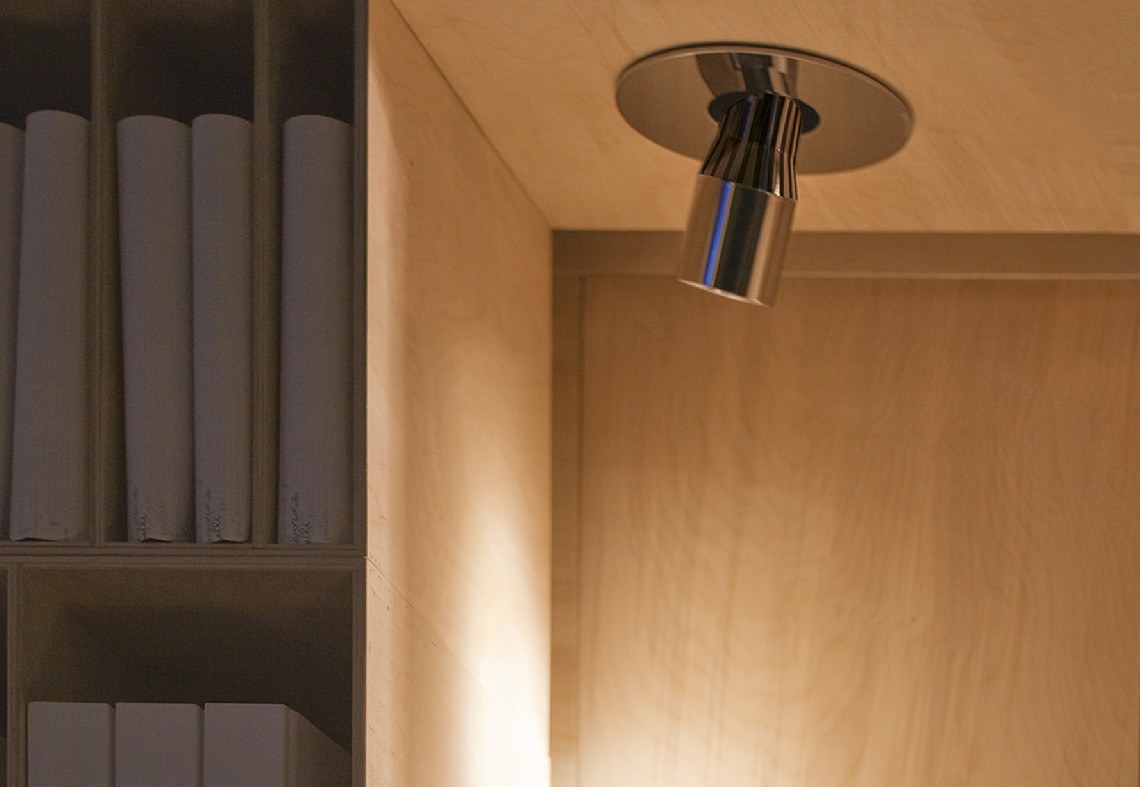

damp location rated recessed light fitting for indoor use. made of oxidised and powder coated or chrome aluminium. the special system of height adjustable wings ables the installation on 10mm/0.4’’ to 30mm/1.2’’ thick surfaces. versions: dca incasso fisso diameter ?210mm/8.3’’ recessed of 80mm/3.1’’ with cylindrical transparent glass, beam 140°, dca incasso orientabile diameter ?210mm/8.3’’ recessed of 135mm/5.3’’ with 18° 40° 58° interchangeables optics, adjustable by 360° on the vertical axis and by 35° on the horizontal axis. wired with 2700K, 3000K or 3000Vb K (designed for high fashion industry) Ra98 led source with les9 up to 19.5W 1110lm and les19 up to 14W 1580lm . 120V 50-60Hz power supply not included, to be installed remotely. components: round bezel diameter ?165mm/6.5’’, square bezel 165x165mm/6.5x6.5’’. accessories: blank square bezel 165x165mm/6.5x6.5’’, fully concealed housing. finishes: my bianco, nero55 and polished chrome.
